Description
|

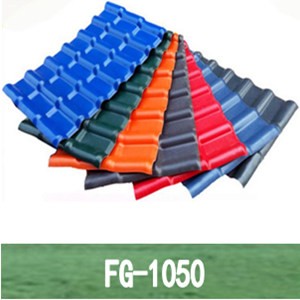

Model |
FG-1050 |
|||
|

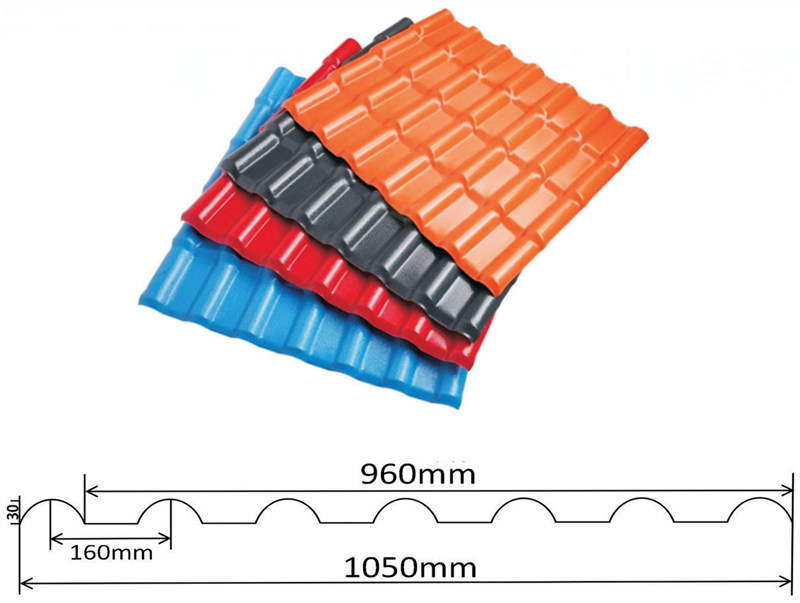

Overall Width |
1050mm |
|||
|
Useful Width |
960mm |
|||
|
Thickness |
2.0~4.0±0.2mm |
|||
|
Wave Height |
30mm |
|||
|
Length |
Customized (Multiples of 219mm) |
|||
|
Purlin Space |
660mm |
|||
|
Weight |
2.0mm: ≈4.0kg/㎡ |
2.5mm: ≈5.0kg/㎡ |
3.0mm: ≈6.0kg/㎡ |
|
|
Container Loading Capacity |
Thickness |
㎡/20FCL (25 Tons) |
||
|
2.0mm |
≈6000㎡ |
|||
|
2.5mm |
≈5000㎡ |
|||
|
3.0mm |
≈4200㎡ |
|||
As the new generation light-weight
environment-friendly building material, FUGU ASA PVC Roof Tiles have been
widely recognized and noticed in the architectural field due to the unique
advantages such as environmental protection, energy saving, recycle use, light
weight, high intensity, waterproof, moisture proof, anti-corrosion, fire-retardant,
soundproof, insulation, etc.
Widely used for flat-to sloping roof
conversion, residential houses, villas, shopping mall, new rural
reconstruction, garden, farm stay, etc. Suitable for all slope roofs of
concrete structure, steel Structure, wood structure, brick structure and other
hybrid structure…
Features of FUGU ASA PVC Roof Tiles:
Excellent
Weather-Resistance: The surface material is coated with ASA which is super
weather resistance engineering resin to ensure lasting beautiful color even
under the conditions of longtime espousing in UV, humidity, hot, cold and
impacting, etc.
Excellent
Corrosive Resistance: It can resist acid, alkali, salt and other chemical
corrosion in the longtime .Very suitable for the coastal areas with heavy salt
&fog corrosion, and other serious air pollution areas.
Excellent
Loading Resistance Property: FUGU ASA
PVC Roof Tiles are with excellent loading resistance property.
Excellent Impact
Resistance : There is no crack on the surface of ASA PVC Roof Tiles when 1 kg steel ball fall from 1.5m height, and
also no hollowing, bubble, stripping& crack after freeze-cycle 10 times.
Excellent
Insulation Properties : FUGU ASA PVC Roof
Tiles adopt Insulating material which is more safely than steel sheet
especially at the areas of thunderstorm and near high voltage line.
Self-Cleaning: The compact and smooth surface with
“lotus effect” don’t absorb dust, clean as new one after being washed by rain.
Convenient
Installation:
-
Large size per sheet with high installation efficiency.
-
Light weight, easy hoisting and unloading.
-
With complete supporting facilities.
-
Simple tool and procedures.
Environment
Friendly: Neither asbestos nor radioactive element, can be completely recycled to
meet the requirement of environment protection.
Good Fire
Resistance: Fireproofing performance reaches to class B1.
Good Sound
Insulation: Noise is 30DB lower than color steel sheet.
