Description
FUGU Plastic Roofing Tile have been widely recognized and noticed in
the architectural field due to the unique advantages such as environmental
protection, energy saving, recycle use, light weight, high intensity,
waterproof, moisture proof, anti-corrosion, fire-retardant, soundproof, insulation,
etc.

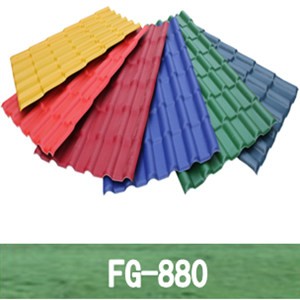

Model |
FG-880 |
|||

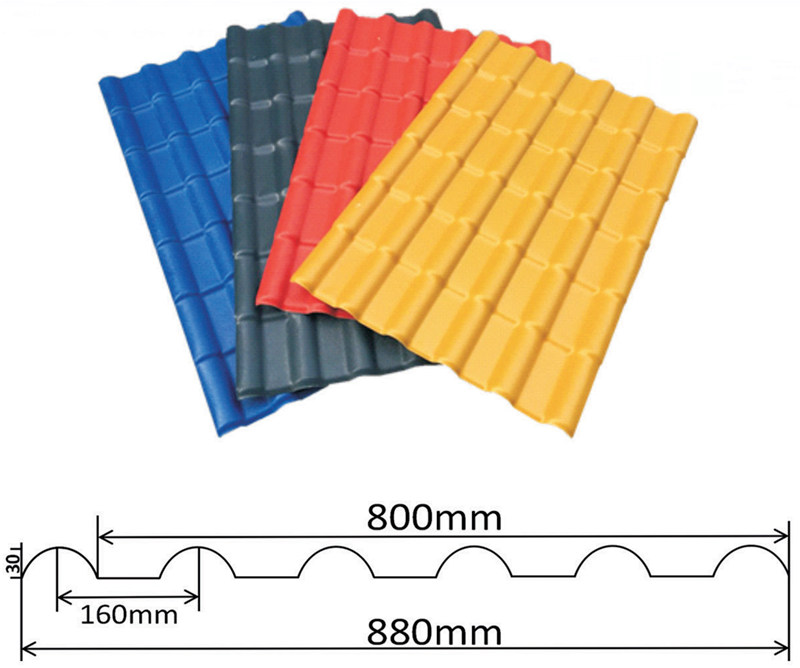

Overall Width |
880mm |
|||
Useful Width |
800mm |
|||
Thickness |
2.0~4.0±0.2mm |
|||
Wave Height |
30mm |
|||
Length |
Customized (Multiples of 219mm) |
|||
Purlin Space |
660mm |
|||
Weight |
2.0mm: ≈4.0kg/㎡ |
2.5mm: ≈5.0kg/㎡ |
3.0mm: ≈6.0kg/㎡ |
|
Container Loading Capacity |
Thickness |
㎡/20FCL (25 Tons) |
||
2.0mm |
≈6000㎡ |
|||
2.5mm |
≈5000㎡ |
|||
3.0mm |
≈4200㎡ |

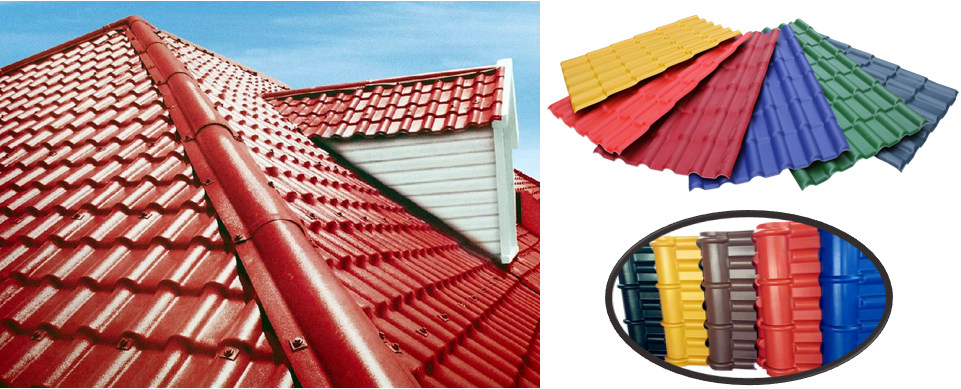

FUGU Plastic
Roofing Tile ---One Product, Diverse Uses
ASA coated Plastic
Roofing Tiles are a popular choice for diverse applications including flat
to sloping roofs, residences, villas, permanent building roofs, shopping malls,
farm houses, gardens, rural constructions, market sheds and lots more. Due to
their incomparable features, our range of lightweight, environmental friendly
synthetic resin roofing materials have been widely appreciated by the
architectural community that recommends them for all types of constructions
such as wood, steel, concrete, brick and hybrid constructions.
Outstanding
Weather Resistance and Corrosion Resistance
As an
experienced light weight Plastic Roofing Tiles supplier, we ensure that
our tiles have stability at the molecular level. The outer surface is coated
with ASA, a superior weather resisting resin. Due to these two properties, our
excellent quality tiles are able to retain their beauty even with long time UV
exposure, humidity, extreme hot and cold conditions as well as other harsh
environmental conditions. These roofing tiles are suitable for use in coastal
areas and areas with heavy pollution because they can withstand long term
exposure to acids, alkali, salt and other types of chemicals.
Load Bearing
Capacity and Impact Resistance
Our ASA Plastic
Roofing Materials come with excellent load bearing capacity and
possess remarkable impact resistance. Through a series of tests we have
established that a 1 kg steel ball falling from a height of 1.5 meters does not
cause our tiles to crack or get damaged in any way. Our roof tiles undergo ten
freeze cycles to make sure extreme cold conditions do not cause any hollowing,
bubbling, stripping or cracks in their structure.
Heat Insulation,
Sound Insulation, Fire Resistance
Our premium
light weight Plastic Roofing Tiles are designed to provide excellent
heat and sound insulation. In fact, they are safer than steel sheets and can
absorb sounds when exposed to extreme weather situations such as storms, gale
force winds. They make interiors quiet in such situations. The noise of our
tiles is 50 decibels lower when compared to a colored steel sheet. The unique
raw materials we incorporate in these tiles ensure good fireproof performance
that reaches to class B1. Our tiles are very difficult to burn.
Environment
Friendly Material
FUGU Plastic
Roofing Tiles are recyclable and energy saving. Other materials such as
asbestos cannot be completely recycled to meet government environment
protection standards but our tiles can, which makes them an ideal choice to
preserve the environment. Our tiles are designed with a compact and glossy
surface with a unique ‘lotus effect’ which does not permit collection of dust.
The result is that they look brand new and require just a natural wash by rain
to get them cleaned. As a light weight Plastic Roofing Tiles supplier,
we understand the need for easy installation with convenient unloading and
transportation. We provide these tiles in large size per sheet for greater
installation efficiency. Our tiles can be installed with simple tools and
procedures and come with full support accessories.
